How to buy_

Minimum order US$25 mixed OK
Minimum order for countries where we have established a distributor is $199

All our Products are RoHs compliant !

For how to order, delivery time, guarantees etc. read our "how to's".

About us

Our group is Chinese Manufacturer which owns 3 factories and 4 workshops:
Export items:
1. LED diodes
2. Cooling modules
3. Heatsinks
4. LCD modules
Domestic market:
5. Multimeters
6. Connectors + cables
7. Switches
Factories are located in Jiangsu and Zhejiang provinces in China.

LED/LED Products Accessories

Pricelist   How to Order

RGB Controller

RGB Controller
  • RGB-Controller-303: Working Temperature: -20~60 degree
    No RoHs certificate available, not for resale on EU territories
  • Supply Voltage: DC 5-24V,
  • Product size: L210*W40*H30mm, Package size:L295*W45*H35mm,
  • Changing mode: 29 modes
  • Remote distance: 100m, Color depth: Max.256 level per RGB, Bright adjust: 8 levels
  • Net weight:175g, Gross weight:205g,
  • Output: Three CMOS drain-open output, Max output current: 8A per channel

Here is the RGB controller movie
http://ledz.com/?p=RGB-LED-strip-controller-movie

Universal Power supply (i.e. for LED Strips)

Power supply
  • JL-1220A Size 180x25x25mm, weight 250g, Water Proof
  • Input 90~250V, Output 12V 1.5A max (18W) - Good i.e. for powering one reel of Flex strips (STRF...)
  • For hobby use only, not CE certified.

Connectors and cables for STR1,STR2 and STR3

LED strip White
  • STR-CAB1 Connect STR1/2 to power source
  • assembled 2 x 15cm cable + connector
LED strip White
  • STR-CAB2 - Interconnect strips for STR1/2
  • assembled 2 x 30cm cable + 2 connectors
LED strip White
  • STR3-CAB1 Connect STR3 to power source
  • assembled 2 x 15cm cable + connector
LED strip White
  • STR3-CAB2 - Interconnect strips for STR3
  • assembled 2 x 30cm cable + 2 connectors
RGBStrip-Cable
  • RGBStrip-Cable - Interconnect strips for STR3
  • assembled 4 x 30.5cm cable + 2 connectors
LED strip White
  • STR-CONN1
  • connector for STR1/2 (set of 1 housing + 2 pins)

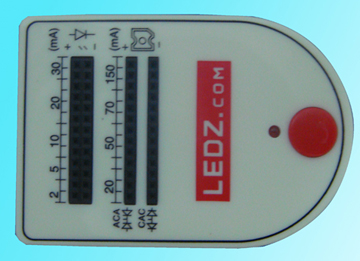

Power source for testing LEDs

LED Tester
  • LED "Tester" (power source for testing the LEDs)
  • Suitable for any LEDs with pins (like through-hole etc.) slots: 2x2mA, 2x5mA, 3x10mA, 4x20mA, 2x30mA
  • Also suitable for Auto (UFO, Piranha) LEDs slots: 1x20mA, 1x50mA, 1x70mA, 1x150mA
  • Power source: 9V battery (NOT included with the tester)
  • Size 85x55x25mm, weight 80g (including 9V battery)

Converter (Driver) for 1W power LEDs

LED Tester
  • PCB01-1WBULB
  • Input 12V, output 350mA (Voltage automatic)
  • Size of PCB 12x13mm, weight 2.9g

Heatsink for 5W/10W LEDs

5W/10W LED hetsink
  • 10VA-H1
  • 100% Cu, great heat-draining capability
  • Size 39 x 39 x 3 mm, weight 37g
