LED Module

Pricelist   How to Order

5050 3Piece Water-proof LED Backlight Series:



  • Main Parameters:
  • Operation Voltage: DC 12V
  • Power Dissipation: 0.72W
  • Input Current: 60mA
  • Dimension:(mm): L70*W20*H10
  • LED Quantity: Per Meter=20units/60pcs 5050 SMD Led
  • IP Rank: IP65
LM-50X16     LED Backlight Series:



  • Voltage 12VDC, Made of 30 pcs of TOP Leds
  • For Indoor application
  • Emitted Color : Pure White/Warm White
  • Viewing Angle: 150 Deg.
  • Power Dissipation: 0.3W
  • Forward Current: 20mA
  • Operating Temperature Range:-25 Deg - 50 Deg
  • Package Details: 10 units =1 string US$ 8.9 is for 1 string
LM-50X16 LED Backlight Series

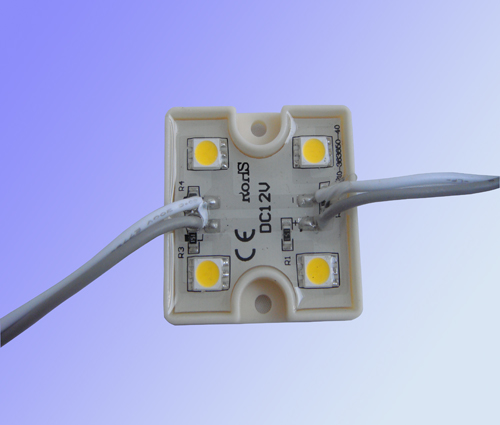

5050 4Piece Water-proof LED Backlight Series:


  • Main Parameters:
  • Operation Voltage: DC 12V
  • Power Dissipation: 0.96W
  • Input Current: 80mA
  • Dimension:(mm): L36*W36*H7
  • LED Quantity: 4pcs 5050 SMD LED
  • IP Rank: IP65
LM-36X36     LED Backlight Series:


  • Voltage 12V DC
  • For Indoor/Outdoor application, Dust proof
  • Emitted Color : Pure White, Warm White
  • Viewing Angle: 120 Deg.
  • Power Dissipation: 1W
  • Forward Current: 80mA
  • Package Details: 10 pcs in each string, US$29 is for 1 string
LM-36X36 LED Backlight Series
LM-W6-60*10     LED Backlight Series:
LM-W6-60*10     LED Backlight Series:
  • LM-W6-60*10 LED Backlight Series:
  • Voltage 9.5V DC
  • For Indoor/Outdoor Commerical and Residential Architectural application
  • Very long operating life(up to 100K hours)
  • High radiometric power per LED
  • High Heat dissipstion Efficiency
  • No UV
  • Emitted Color : Pure White
  • Viewing Angle: 120 Deg
  • Lens Type: Hemisphere
  • Power Dissipation: 1W/2W/3W
  • Forward Current: 120mA/200mA/320mA
  • Operating Temperature Range:-25 Deg ~80 Deg
  • Rules of Naming:
    LM: Led Module
    W6: Emitted color ( Pure White )
    10: The PCB width (mm)
    60: The PCB length (mm)
    1W/2W/3W: Power
  • W3: Emitted color (Warm White), minor order: 100pcs
LM-60X10 LED Backlight Series
  • LM-W6-60X10-1W
  • White 5000K~6500K,1W,DC9.5V,100LM
  • US$ 1.99 is for 1 piece
  • For datasheet please download here: Datasheet of LM-W6-60X10-1W
  • LM-W6-60X10-2W
  • White 5000K~6500K, 2W,DC9.5V,200LM
  • US$ 3.69 is for 1 piece
  • Minimum order quantity is 100pcs.
  • For datasheet please download here: Datasheet of LM-W6-60X10-2W
  • LM-W6-60X10-3W
  • White 5000K~6500K, 3W,DC9.5V,300LM
  • US$ 4.99 is for 1 piece
  • For datasheet please download here: Datasheet of LM-W6-60X10-3W
